Application & ratings
Equipment, operating voltage, temperature and required style.
Custom cable
Start with your application, drawing or sample description. Build a clear specification before discussing supply.
BUILT AROUND YOUR REQUIREMENTS
From an idea
to a cable specification.
Different equipment builds need different cable constructions. Share what you already know, and identify the open points with our business team.
Prepare your enquiry
What to define
Conductor & cores
AWG, strand arrangement, material and number of conductors.
Insulation & jacket
Material, dimensions, colour and marking requirements.
Shielding & construction
Shield type, core arrangement and overall construction.
Supply & packaging
Quantity, reel or cut length, packaging and destination.
Drawings & documents
Drawings, sample reference and required inspection documents.

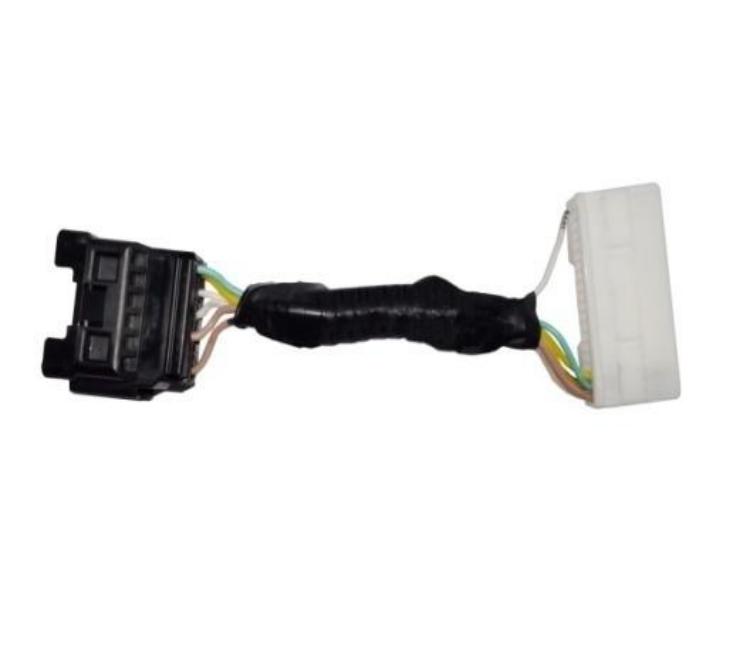

WHEN YOUR PROJECT NEEDS AN ASSEMBLY
Specify both ends.
Define every branch.
Start with the cable construction, then add the connection details needed to turn it into an assembly.
- Connector / terminal manufacturer and part reference
- Pin assignment, branch arrangement and finished lengths
- Drawing revision, quantity and inspection requirements
DRAWING-LED PRODUCT EXAMPLES
Terminals. Branches. Lengths.
Use these examples to discuss the connection layout. Confirm the cable, terminal or connector reference, branch dimensions and required checks from your drawing.

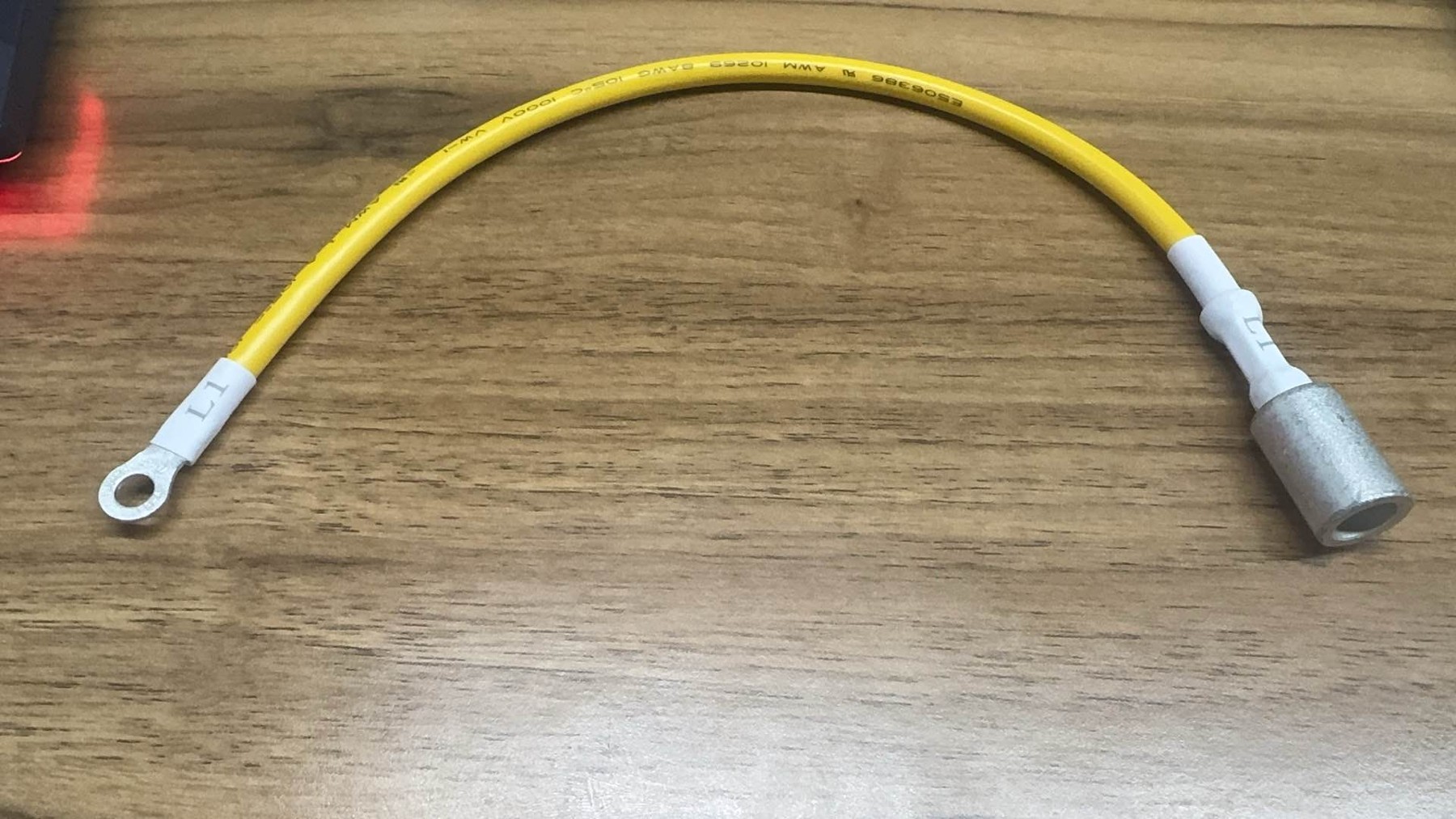

Terminal-ended cable
Different connection formats at each end.

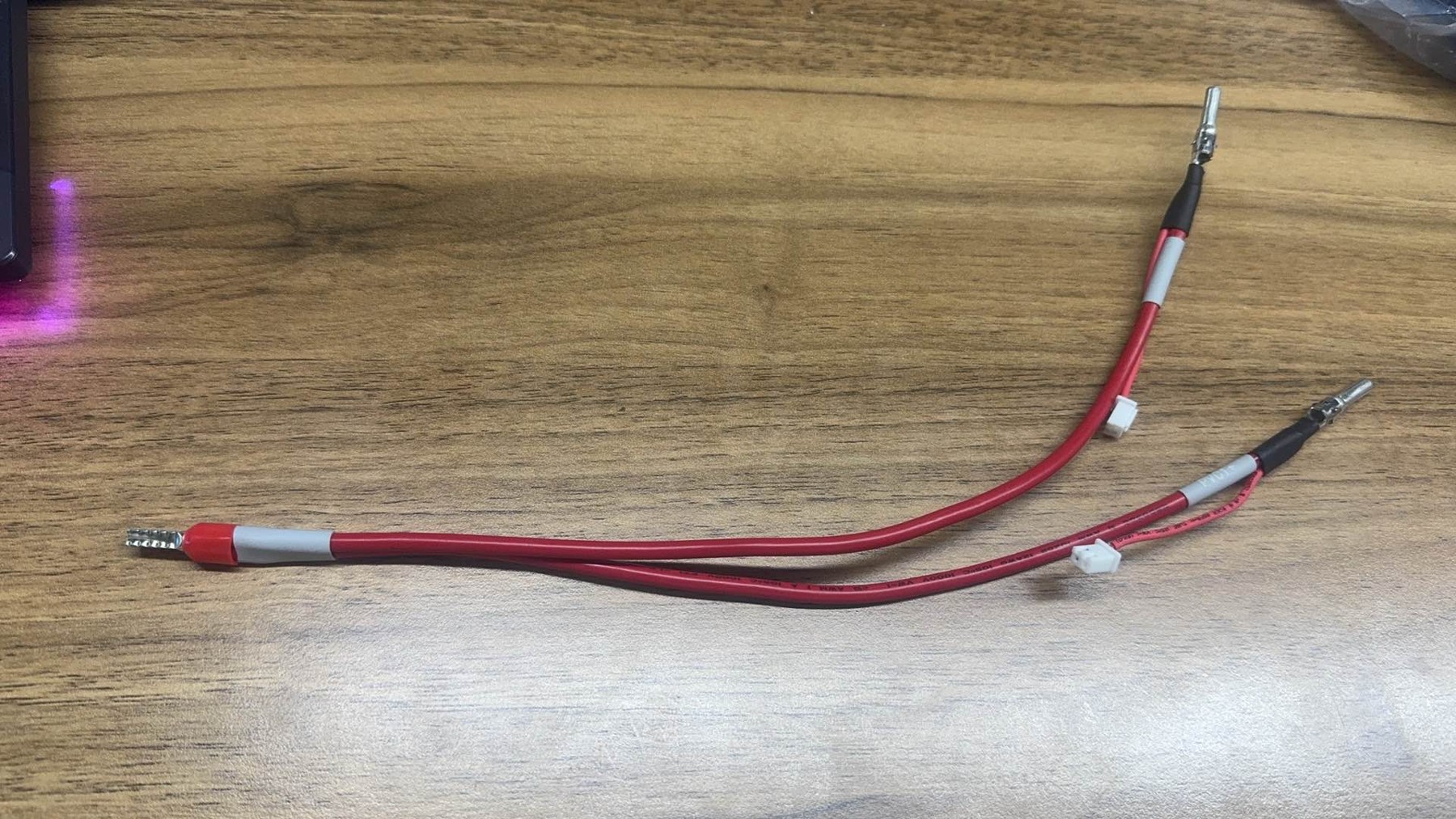

Branched cable example
Multiple branches and termination points.

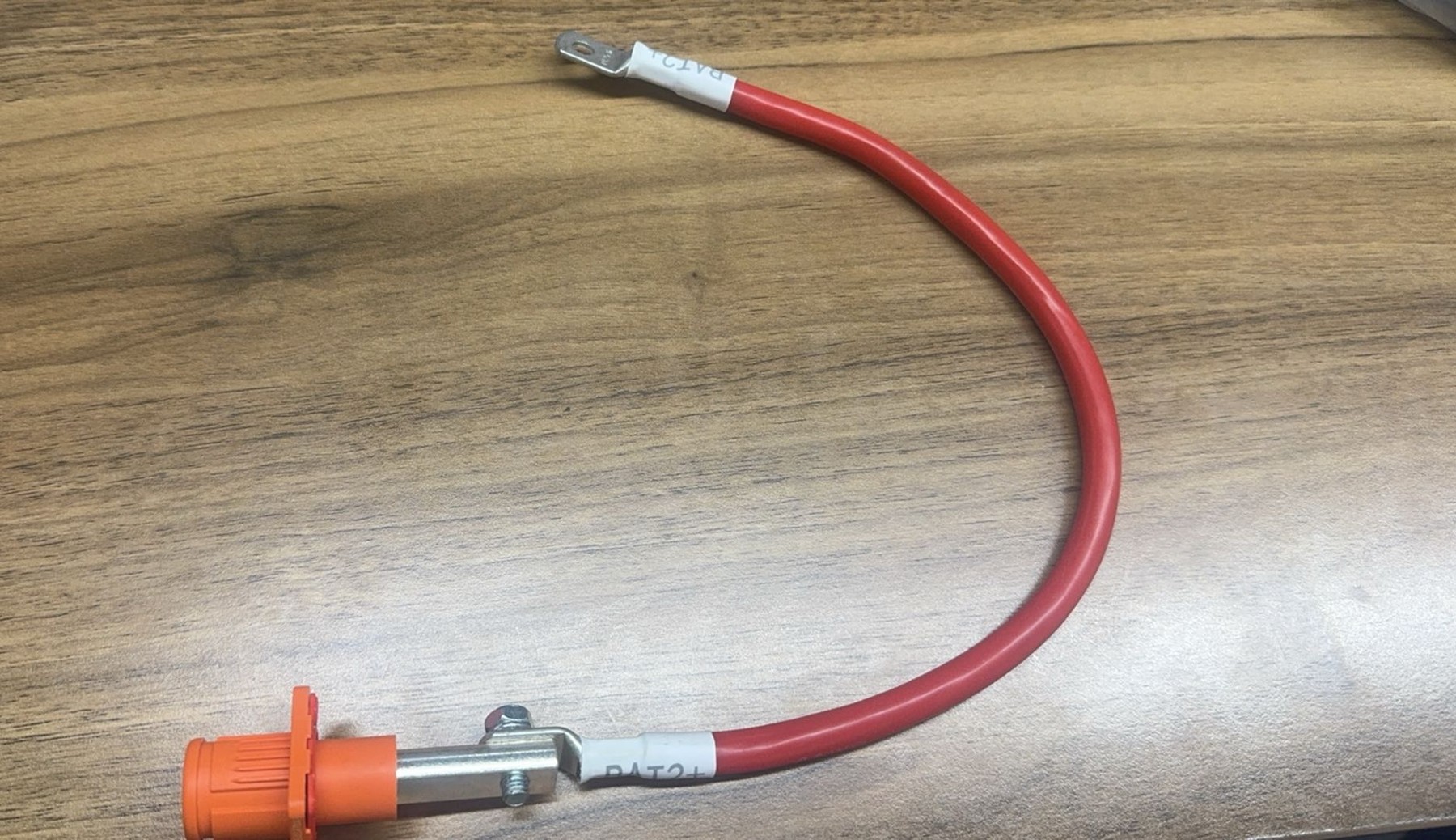

Connector and terminal example
A connector end paired with a ring terminal.
Have a cable specification?
Send your drawing, construction and quantity. Let’s review the details.
