Quality & testing
See the measuring instruments, sample-test fixtures and inspection work behind a defined cable specification.
SPECIFICATION-LED REVIEW
A defined requirement.
A relevant test.
Construction, operating conditions and your drawing determine what needs to be checked. Agree the sample, method and required documents for the selected cable or assembly.
Discuss test requirementsEQUIPMENT & INSPECTION
A closer look at the checks.
Real equipment photographs. Test scope and acceptance criteria are agreed for the quoted product.
Insertion & withdrawal testing
Equipment for reviewing connector insertion and withdrawal behaviour. Confirm the method and acceptance criteria for your assembly.
Tensile testing
Test-frame and clamping equipment for mechanical sample evaluation.
Cable flex testing
A multi-station fixture for evaluating cable flexing. The test conditions are defined for the selected sample.
Electrical inspection
Inspection instruments and a working test bench. Confirm the electrical checks required for your cable.

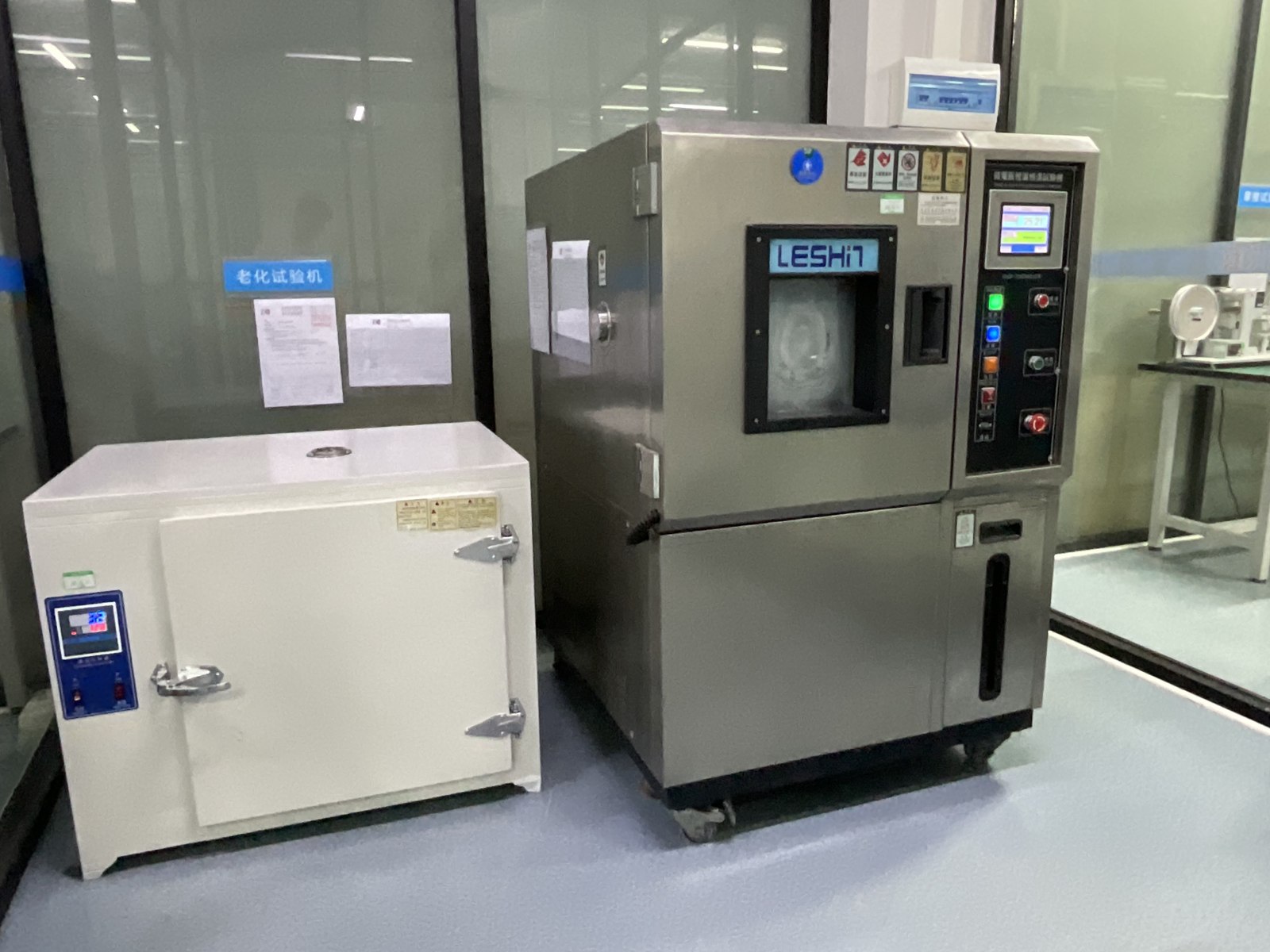

Environmental testing
Chamber equipment for agreed temperature and environmental test requirements.
Connector vision inspection
CCD inspection equipment for connector components and assembly details.
WHAT YOUR ENQUIRY SHOULD INCLUDE
Connect the drawing to the test plan.
- Cable or assembly drawing and revision
- Operating voltage, temperature and mechanical conditions
- Required inspection items and acceptance criteria
- Specification sheets and compliance documents needed
Have a cable specification?
Send your drawing, construction and quantity. Let’s review the details.
